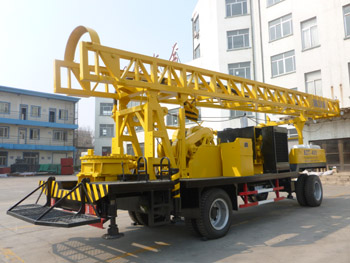

Description: Tralier mounted water well drilling rig BZCT600 rotary directly drill rig drill depth 600m hole diameter 500mm
BZCT600 drilling rig is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylin...   Read More

Description: Tralier mounted water well drilling rig BZCT400SZ directly rotary drill rig 400m drill depth 500mm hole diameter
BZCT400SZ tralier mounted drilling rig is designed by our engineers; it is adopt trailer mounted and is a rotary drilling rig.
This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
The power of drilling rig comes from the diesel engine; the...   Read More

Description: Tralier mounted water well drilling rig BZCT300SZ rotary drilling rig 300m drill depth 500mm hole diameter
BZCT300SZ tralier mounted drilling rig is designed by our engineers; it is adopt trailer mounted and is a rotary drilling rig.
This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
The power of drilling rig comes from the diesel engine; the rig s...   Read More

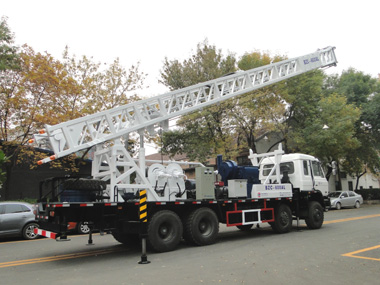

Description: Truck mounted water well drilling rig BZC600CLCA rotary drilling rig 600m drill depth 500mm hole diameter
BZC600CLCA truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.
The truck chassis adopts the 8*6 special crane chassis of brand CHANA TRUCK and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis
This rig is a rotary drilling rig with directional circulation. It is e...   Read More

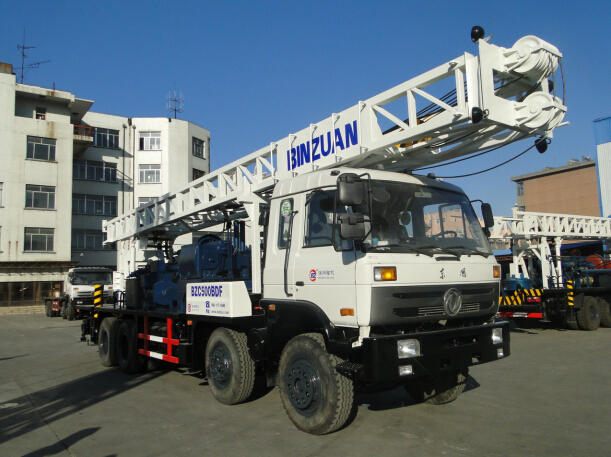

Description: Truck mounted water well drilling rig BZC500BDF rotary drilling rig 500m drill depth 500mm hole diameter
BZC500BDF truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.
The truck chassis is adopt the 8×4 special chassis of brand DONGFENG TRUCK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump，mast are setup on the chassis.
This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/4-80 mud pu...   Read More

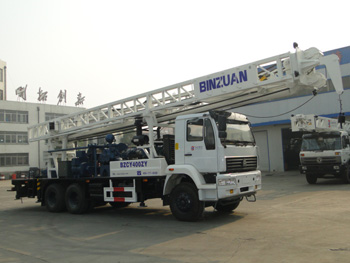

Description: Truck mounted water well drilling rig BZCY400ZY directly rotary drilling rig 400m drill depth 500mm hole diameter
BZCY400ZY truck mounted drilling rig is a directly rotary drilling rig. This truck chassis is adopt the 6×4 special chassis of brand SINOTRUK, 11.00R20 steel off-road tire tread, with good off-road performance.
This rig has very compact structure, the engine of chassis is adopted WP7.210E40 diesel engine, the power is 155kw(strong power) The drilling rig has independent diesel engine (DEUTZ-WP6G125E22), the power i...   Read More

Description: Truck mounted water well drilling rig BZC350DF rotary drilling rig 350 Drill depth 500mm hole diameter
BZC350DF truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.
The truck chassis adopts the 6X4 special crane chassis of brand DONGFENG TRUCK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump，mast are set up on the chassis....   Read More

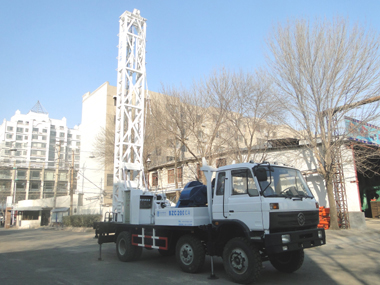

Description: Truck mounted drilling rig BZC300CA reverse circulation drill rig
BZC300CA truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.
The truck chassis adopts the 6X4 special crane chassis of brand CHANA TRUCK , the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump，mast are set up on the chassis....   Read More

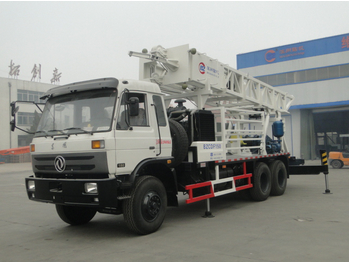

Description: BZCDF200DF reverse circulation drilling rig 200m drill depth 500-2500mm drill diameter
BZCDF200DF Truck mounted reverse circulation drilling rig is our self-dependent innovation product. It is top head drive drilling rig. It adopts famous brand TRUCK 6X4 special truck chassis and the generator, hydraulic system, electronic control system, 6BS gravel pump, drill tower are on the chassis;...   Read More

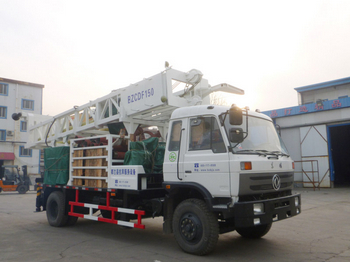

Description: BZCDF150SDF reverse circulation drilling rig 150m drill depth 500-2500mm drill diameter
BZCDF150SDF Truck mounted reverse circulation drilling rig is our self-dependent innovation product. It is top head drive drilling rig. It adopts famous brand TRUCK 4X2 special truck chassis and the generator, hydraulic system, electronic control system, 6BS gravel pump, drill tower are on the chassis;...   Read More
