Truck mounted water well drilling rig BZC350DF
[ Edit: admin     Created Date: 2016-07-26   Readed Times:      Font:big middle small]


Truck mounted water well drilling rig BZC350DF rotary drilling rig 350 Drill depth 500mm hole diameter

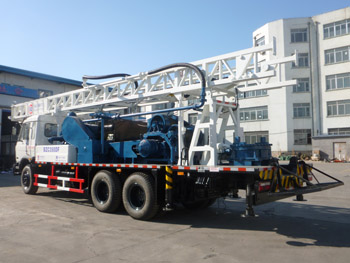

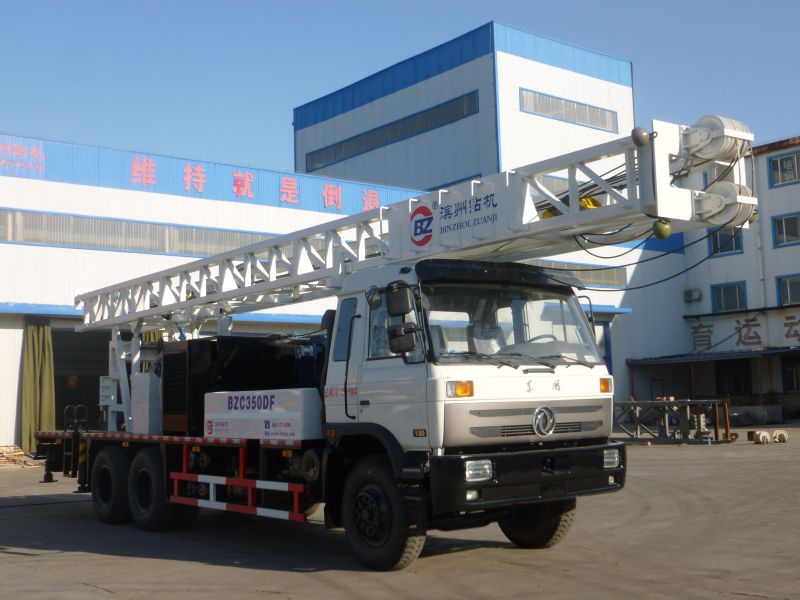

BZC350DF truck mounted drilling rig is designed by our engineers; it  adopts truck mounted and is a rotary drilling rig.
The truck chassis  adopts  the 6X4 special crane chassis of brand DONGFENG TRUCK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are set up on the chassis.
Main features:
◎ BZC350DF truck mounted drilling rig is designed by our engineers; it  adopts truck mounted and is a rotary drilling rig.
◎ The truck chassis  adopts  the 6X4 special crane chassis of brand DONGFENG TRUCK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are set up on the chassis.
◎ This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
◎ The power of drilling rig comes from the NC6110ZG17-20(115kw) independent engine, the rig setups distribute implement and hydraulic system.
◎ We can upset the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
◎ The adding pressure device is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
◎ The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
◎ The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Technical Specification:
Technical parameter
 Drilling depth(M)

350
 Drilling diameter(mm)

500
 Speed of turntable(r/min)
50;75;114(reverse)
 Torque of turntable(KN.m)
13.2;8.8;5.8(reverse)
 Single rope lifting capacity of mian windlass(KN)
30
 The capacity of main windlass(KN)
 180
 Single rope lifting capacity of hydraulic windlassKN 30
 The capacity of hydraulic windlass(KN) 120
 The lifting capacity of hook(KN)
180
 Bearing capacity of mast (KN)
180
 The height of mast (mm)
11900
 Bearing capacity (t)
25
Pipe
 Kelly bar(mm)
108×108×7500
 Assistant pipe (mm)
Ф89×10×5500

Hydraulic pump
 Model
CB-HP50/32Z
 Pump delivery (ml/r)
50/32
 Rated speed (r/min)
2000
 Rated pressure(MPa)
20






BW850/2A
plunger pump

 Diameter of cylinder (mm)
150
 Stroke of piston (mm)
180
Theory of flow (L / min)
600      850
Rated pressure (Mpa)
3         2
Pounding  times (min-1)
58        82
 Diameter of suction tube (mm)
127
 Diameter of drain pipe (mm)
64
 Input speed (r / min)
470
 Input power (kw)
40
 Overall dimensions (mm)
2000*1030*1400
Weight (t)
1.5



Truck chassis
 Model
DFS1251GLJ8
 Drive form
6×4

Engine
 Model
YC6J180-33(Europe IV emission standard)
 Rated power(KW)
132
 Speed (r/min)
2500
 Size (L*W*H)(mm)
11110×2490×2500
Drilling engine
Model
NC611ZG17-20
Rated power (kw)
115




Speed (r/min)
1100






 The best working gear (or speed)
5th gear(1000-1400r/min)
 The highest speed(Km/h)
75
 Weight (kg)
19340
 Transport size(L*W*H)(mm)
12400*2480*3700
 Working size(L*W*H)(mm)
10900*4500*13600
Selectable configuration:



Compressor

Brand
Displacement
Pressure
Diesel engine
Power
American Sullar1070XH
30.3 m3/min
2.41Mpa
Caterpillar
347Kw
Swedish Atlas XRVSI096
28.3 m3/min
2.0Mpa
Caterpillar
328Kw
Japan PDSJI00S
28.3 m3/min
2.11Mpa
Mitsubishi
327Kw
Kaishan LGCY26/20K
26 m3/min
2.0Mpa
Cummins
298Kw
Hongwuhuan HG900/20
25.5 m3/min
2.0Mpa
Cummins
239Kw


DTH
               Origin
Model
Diameter
Length
Weight
South Korea
TD50
130-152mm
781mm
62Kg
TD80
194-254mm
1264mm
180Kg
TD100
251-305mm
1575mm
350Kg
TD112
320-381mm
1788mm
618Kg


Drill bit

            DTH
Diameter
           TD50
146mm
                TD80
216mm
219mm
250mm
Dust device
