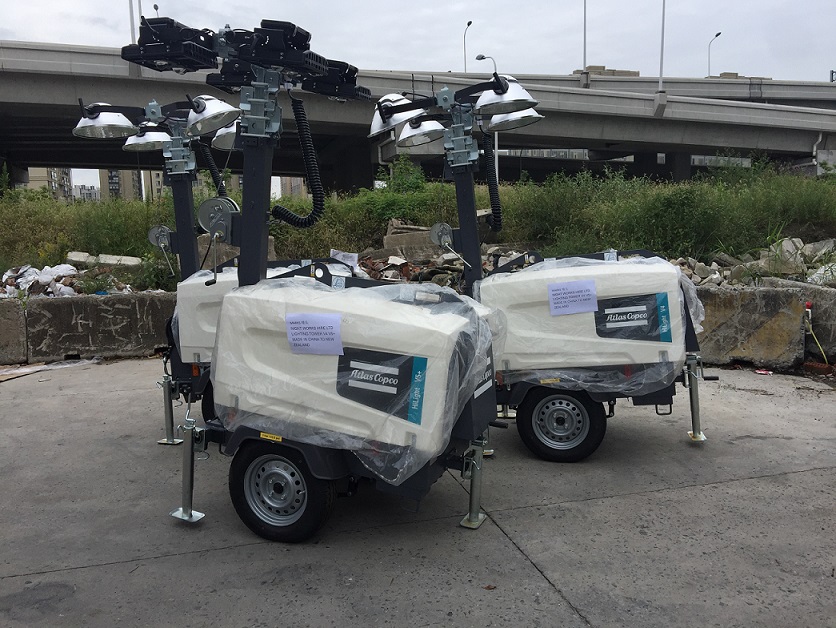

HiLight V4 V5+ Mobile Lighting Tower

[ Edit： admin 　 Created Date： 2017-11-07 Readed Times： Font：big middle small]

HiLight V4 V5+

The HardHat® range.Providing outstanding safety and efficiency.

The HiLight V4 and V5+ are the light towers that construction sites, outdoor events and industries around the world have been asking for. We know you need a durable and robust light tower that ensures safety. Our HiLight V4 is the leading solution within the 4000W metal halide light tower segment.For the ultimate in fuel economy and reliability, the premium HiLight V5+ is an excellent alternative. Its LED lighting technology provides extended benefits and represents outstanding value for our customers.

In addition, we have coupled our new light tower technology with the legendary Atlas Copco HardHat canopy. The HardHat canopy is exceptionally tough, yet still lightweight. Many years down the road,

your light tower will look and perform like it only just rolled onto your site, maximizing the value of your asset. The result, an incredibly durable, lightweight and compact light tower which can be transported with the mast in the vertical position, allowing quick, safe and efficient transportation.

HIGH LUMINOSITY

The HiLight V4 has four metal halide lamps offering high efficiency. A luminosity of 440.000 lumens from 4 x 1000 W metal halide lights.

HIGH LUMINOSITY

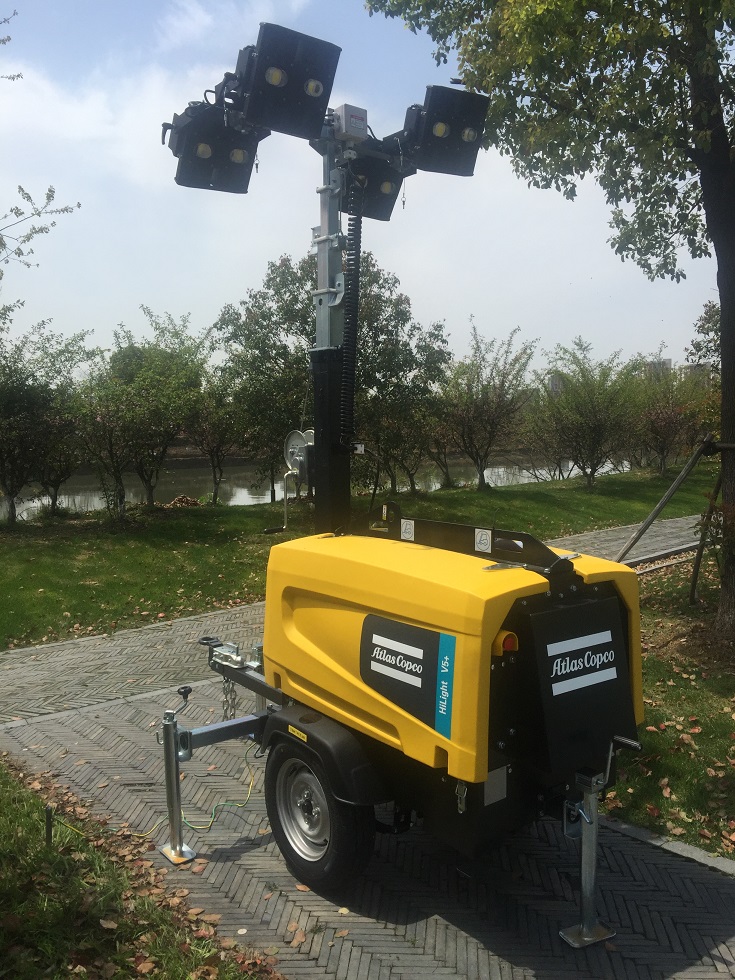

The HiLight V5+ comes with 4 LED lamps x 350 W that gives you even more durability and light coverage.

The compact footprint of both the HiLight V4 and V5+ allows you to transport up to 20 units on a 53 ft trailer. Its lifting beam with forklift pockets along with a heavy duty lifting eye facilitates easy movement. The spring axle trailer, tow hitch, and lighting conform to transportation requirements.

FUEL EFFICIENCY

The best fuel consumption in its segment with a fuel consumption of 0.7 l/hr, and a maximum run time of 150 hrs.

QUIET OPERATION

Thanks to its air flow design and the Hardhat canopy, the HiLight V5+ is the most silent Light Tower in its segment with 63 dB(A) @ 7m.

SAFE MAST

The vertical mast is extremely stable and quick to operate. These two models can be transported with the mast in vertical position.

ENVIRONMENTALLY SAFE

The two models feature a spillage free frame for fluid containment. We also feature easy access oil & water drains for serviceability.

ADDITIONAL STANDARD FEATURES

• 4 LED lamps x 350 W / 4 x 1000 W metal halide

• 4 heavy duty stabilizers with level bubble

• Spring axle lower case and tow hitch conforms to transportation requirements

• Compact Kubota Z482 Tier 4 Final engine

• Spillage free frame with fluid containment

• Oil & coolant drains for serviceability

• User friendly control & power panel:

-- Independent circuit breakers

-- Hour meter & key switch

• 105 liter fuel tank for long run time between fills

OPTIONS

• Emergency stop button

• DC electric winch

• Ground connection

• LC 1003 digital controller with photocell and weekly timer

• Engine block heaters

• Spark arrestor

• Customized colors

• Auxiliary power output

Technical data

		Hilight V4	Hilight V5+
Rated voltage	V	230	230
Rated power	kW	5.4	2.5
Operating temperature	°C	-10/49	-10/50
Noise level	dB(A)	71	63
Brand model		Kubota Z482	Kubota Z482
Rotating speed	rpm	3000	1500
Output power	kW	6.9	2.7
Brand model number generator		Sincro EK2MCT	MECC alte LT75
Full load run time	hrs	57	150
Light		4*1000W Metal halide lamp	4*350 LED light
Lifting method		Manual	Manual
Rotation angle		360°	360°
Maximum height	m	7.5	7.5
Maximum wind resistance rating		9	9
Shipping dimensions	mm	1670 X 1100 X 2500	1670 X 1100 X 2500
Operating dimensions	mm	2900 X 2310 X 7540	2900 X 2310 X 7540
Weight	kg	694	694
