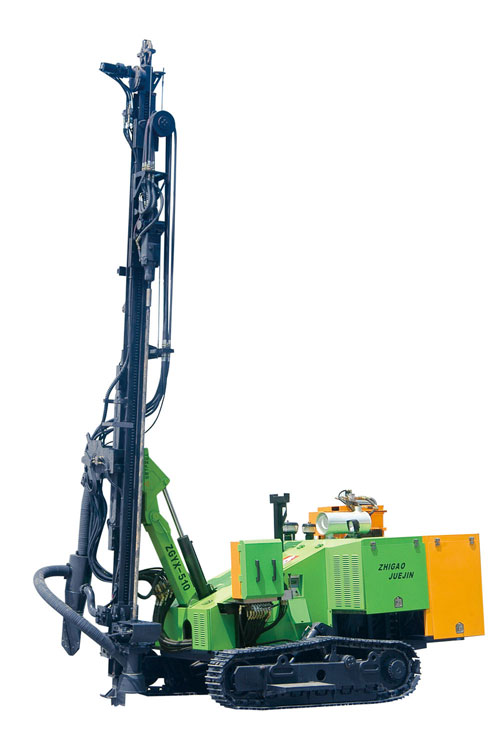

Integrated Top Hammer Surface Drill Rigs
ZGYX-510/520
Product Introduction
High efficiency & energy saving:
penetration rate is about 1 m/min, average fuel consumption rate below 0.5 L/m, operated in the recommended hole range.
Cross terrain ability & flexibility:
Folding boom design reduces transportation dimensions and guarantees stability with wider drilling coverage to allow the tramming speed up to 4km/hr.
Enhanced oscillation design improves rig ability in rough terrain and make it possible to operate on a 25 degree slope.
Cost & maintenance:
Other than key components, most parts including hydraulic drifter localized to lower cost of purchase and maintenance comparing with imported rigs.
Advanced design concept -----Best Price to Value comparison
ZEGA own developed component:
ZY-101/103 Hydraulic drifter
Slender but strong piston for better energy transmission. 3 adjustable modes of long, medium and short strokes according to rotation, rock conditions
and hole size for best work efficiency.
Technical Specification:
|
Model
|
ZGYX-510
|
ZGYX-520
|
|
Rock Drill
|
|
|
|
Model
|
ZY-101
|
ZY-103
|
|
Manufacturer
|
ZEGA
|
ZEGA
|
|
Hole Range.
|
42-76 mm
|
42-76 mm
|
|
Rotation Speed
|
0-300 r/min
|
0-300 r/min
|
|
Max. Rotation Torque
|
800 N.m
|
800 N.m
|
|
Max. Percussion Frequency
|
40 HZ
|
40~60 HZ
|
|
Drill Rod
|
T38x 3.66 m
|
T38x 3.66 m
|
|
Hole Depth
|
15 m
|
15 m
|
|
Max. Impact Power
|
14 kw
|
15 kw
|
|
Diesel Engine
|
|
|
|
Manufacturer
|
Cummins
|
Cummins
|
|
Model
|
4BTA3.9-C125
|
4BTA3.9-C125
|
|
Rated Power
|
93 kw
|
93 kw
|
|
Speed
|
2100 rpm
|
2100 rpm
|
|
Fuel Tank Capacity
|
210 L
|
210 L
|
|
Boom & Feed
|
|
|
|
Boom Angle
|
-
|
-72° ~+54°
|
|
Arm Angle
|
-
|
Left22°；Right37°
|
|
Pitch Angle
|
96°
|
-8° ~+88°
|
|
Swing Angle
|
±10°
|
Left15°;Right 97°
|
|
Drifter Travel Length
|
4180 mm
|
4180 mm
|
|
Feed and Lift Capacity
|
14.4 kn
|
14.4 kn
|
|
Extension Length
|
850 mm
|
1200 mm
|
|
Length of Feed Beam
|
7236 mm
|
7236 mm
|
|
Rod Length
|
3660 mm
|
3660 mm
|
|
RHS and numbers of『drills holding
|
Option •4+1
|
Standard •4+1
|
|
Screw Air Compressor
|
|
|
|
Manufacturer
|
ZEGA
|
ZEGA
|
|
Air End Manufacturer
|
GHH
|
GHH
|
|
Capacity F.A. D
|
4.5 m3/min
|
4.5 m3/min
|
|
Max. Working Pressure
|
7 bar
|
7 bar
|
|
Chassis
|
|
|
|
Max. Climbility
|
25°
|
25°
|
|
Ground Clearance
|
360 mm
|
360 mm
|
|
Track Oscillation
|
±14°
|
±14°
|
|
Max. Tramming Speed
|
4 km/h
|
4 km/h
|
|
Max. Traction Force
|
55 kn
|
65 kn
|
