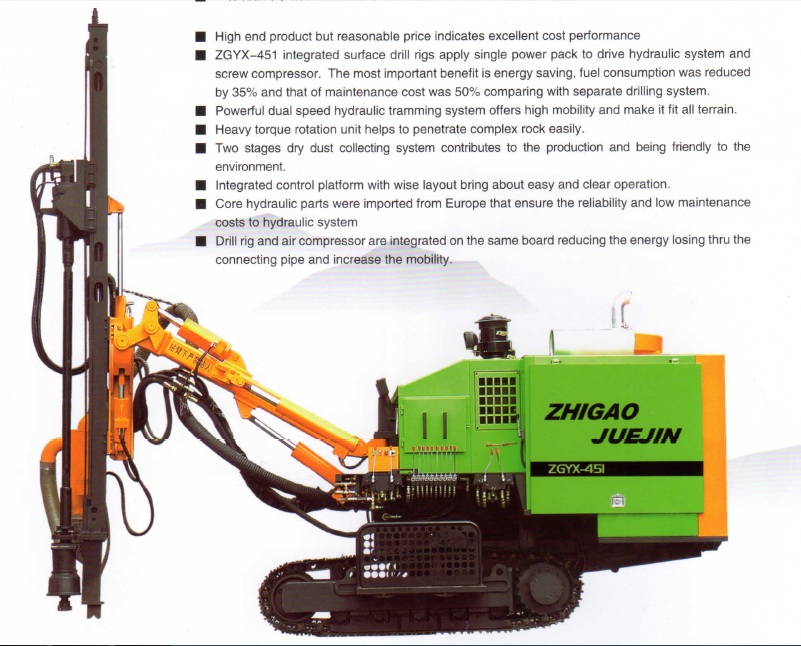

Integrated DTH Surface Drill Rigs (Series)
ZGYX-421 /451 /452
Product Introduction
This series of integrated down the hole (DTH) surface drill rigs have the same traits of high efficiency, energy saving, and environment friendly with
the automatic DTH rigs except cab and drill pipe handling system. Single power pack drives both screw air compressor and hydraulic system with
power output of stagger design. Comparing with separated drills, the power output of integrated DTH rig is reduced by 30% and maintenance
cost reduced by 50%. Drill rig and air compressor are integrated on board with dust collector standard reduces energy loss and raises work
efficiency and mobility. Powerful hydraulic dual tramming control system makes good cross terrain adaptability. Large torque rotation motor
makes antijamming easy and simple. Integrated control platform with wise layout and full displays bring about easy, simple and clear operation.
Core hydraulic components by global famous makers ensure reliable operation.
These rigs are the best substitutes for the separated drill rigs due to excellent price to value comparison.

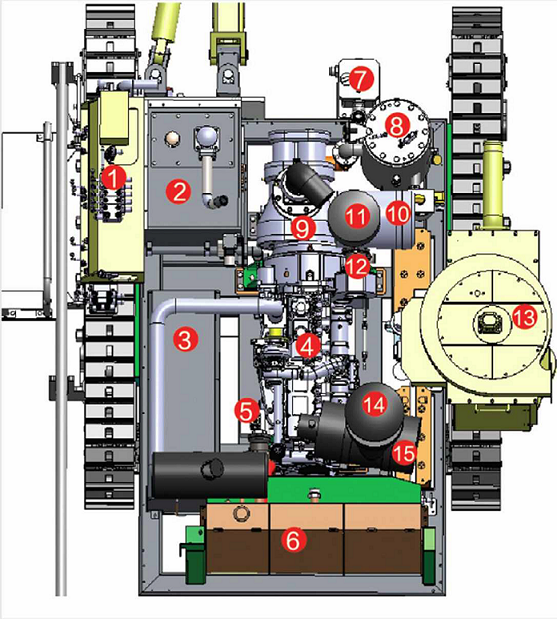

3D drawing and components
Integrated Hydraulic valve blocks and modular design, and multiple folding door design for easy maintenance access and simpler
and smart interior layout.
|
1.
|
Operation Console
|
|
2.
|
Hydraulic Oil Tank
|
|
3.
|
Diesel Fuel Tank
|
|
4.
|
Yuchai Diesel Engine A7AF3
|
|
5.
|
Dust Pump
|
|
6.
|
Cooler Assembly
|
|
7.
|
Lubricator
|
|
8.
|
Oil and Air Barrels
|
|
9.
|
Screw Air Compressor
|
|
|
Compressor Air Filter
|
|
11.
|
Compressor Primary Air filter
|
|
12.
|
Double Gear Pump
|
|
13.
|
Dust Collector Assembly
|
|
14.
|
Engine Primary Air filter
|
|
15.
|
Engine Air Filter
|
Zega own developed Two stage dust collector system, efficient and environment friendly.
Standard two-speed heavy duty tramming motor improving mobility and climbility with less work stoppage.
Customized to complex conditions with multi-angle design, ground clearance lowered to 180 mm for horizontal drilling.
Standard two-speed heavy duty tramming motor improving mobility and climbility with less work stoppage.
Centralized and lower control panel and displays, convenient and efficient.
Technical specification:
|
Model
|
ZGYX-421
|
ZGYX-451
|
ZGYX-452
|
|
Diesel Engine
|
|
Model
|
YC6A180Z
|
YC6A240-20(A35F0)
|
YC6A260L-T20
|
|
Manufacturer
|
YuChai
|
YuChai
|
YuChai
|
|
Rated Power
|
140 kw
|
177 kw
|
191 kw
|
|
Speed
|
2000 rpm
|
2150 rpm
|
2150 rpm
|
|
Fuel Tank Capacity
|
170 L
|
420 L
|
420 L
|
|
Screw Air Compressor
|
|
Manufacturer
|
ZEGA
|
ZEGA
|
ZEGA
|
|
Air End Manufacturer
|
Hanbell
|
Hanbell
|
Hanbell
|
|
F.A.D
|
10 m3/min
|
13 m3/min
|
15 m3/min
|
|
Working Pressure(Max.)
|
14.5 bar
|
14.5 bar
|
17 bar
|
|
Functional Specifications
|
|
Hole Range
|
80-100 mm
|
108〜27 mm
|
108-127 mm
|
|
Recommended Hole
|
90 mm
|
108 mm
|
115 mm
|
|
Hole Depth(Max.)
|
20 m
|
20 m
|
20 m
|
|
Drill Pipe Diameter
|
60 mm
|
76 mm
|
76 mm
|
|
Drill Pipe Length
|
3 m
|
3 m
|
3 m
|
|
Pipe Handling System
|
6+1
|
6+1
|
6+1
|
|
Hammer Size
|
3.5" Standard
|
4" Standard
|
4" Standard
|
|
Rotation Speed
|
0-110 r/min
|
0~ 100 r/min
|
0~ 100 r/min
|
|
Rotation Torque
|
1450 N.m
|
2479 N.m
|
2479 N.m
|
|
Function of Boom
|
|
Boom Type
|
Single Straight-boom
|
Single Straight-boom
|
Single Straight-boom
|
|
Length of Feed Beam
|
5340 mm
|
5430 mm
|
5430 mm
|
|
Feed Extension
|
960 mm
|
1200 mm
|
1200 mm
|
|
Feed Lift Capacity (Max.)
|
15 kn
|
19.5 kn
|
19.5 kn
|
|
Feed Driving Type
|
Cylinder and Chain drive
|
Cylinder and Chain drive
|
Cylinder and Chain drive
|
|
Travel Length
|
3200 mm
|
3200 mm
|
3200 mm
|
|
Feed Rate(Max.)
|
0.75 m/s
|
1.1 m/s
|
1.1 m/s
|
|
Pull up Force(Max.)
|
25 kn
|
37.5 kn
|
37.5 kn
|
|
Chassis
|
|
Tramming Speed(Max.)
|
High: 3.2 km/h
Low: 1.5 km/h
|
High: 3 km/h
Low: 1.5 km/h
|
High: 3 km/h
Low: 1.5 km/h
|
|
Max. Climbility
|
25°
|
23°
|
23°
|
|
Ground Clearance
|
545 mm
|
360 mm
|
360 mm
|
|
Traction Force
|
65 kn
|
71 kn
|
71 kn
|
|
Track Oscillation -
|
|
±14°
|
±140
|
|
Weight & Dimensions
|
|
Width
|
2560 mm
|
2500 mm
|
2500 mm
|
|
Length
|
5700 mm
|
7567 mm
|
7567 mm
|
|
Height
|
2900 mm
|
2900 mm
|
2900 mm
|
|
Weight (excluding options)
|
7000 kg
|
11300 kg
|
11300 kg
|
