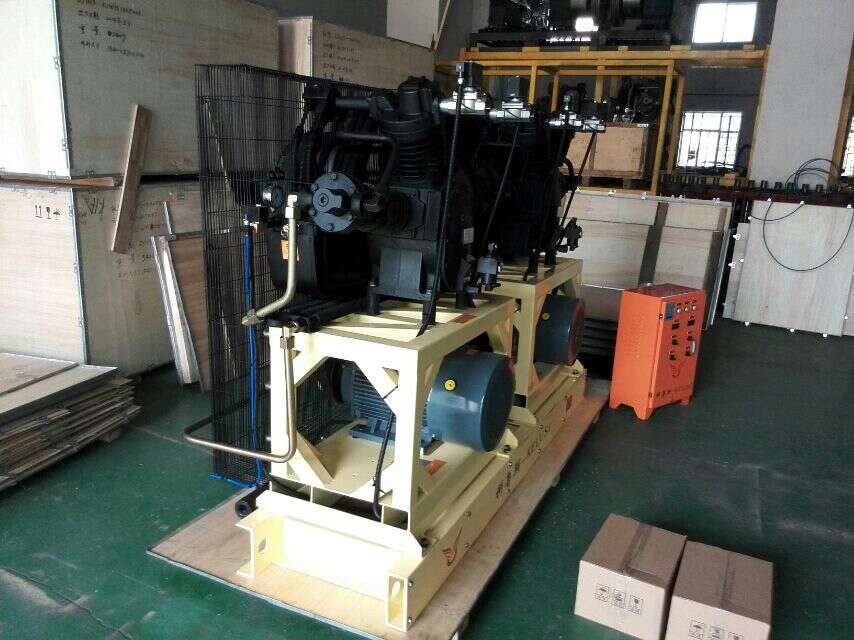

BOOSTER(COMPRESSOR)EASY, SIMPLE, ECONOMOCAL.
Souair booster series offer excellent products performance, reliability, and comprehensive range of high performance booster air compressor amplify
7-10bar compressed air from existing network up to 60bar without invest in dedicated high pressure compressor with costly installation and maintenance.
The modular package with small footprint, do not require special foundation are ideal for supplying high pressure compressor compressed air in PET
blow molding and packaging industries.
2.2 BOOSTER -TECHNICAL SPECIFICATIONS:
|
Model
|
Head
model
|
Inlet
|
Final
|
Inlet suction
|
FAD
|
Speed
|
Motor power
|
Weight
|
Dimension
|
|
Bar
|
Bar
|
M3/min
|
M3/min
|
rpm
|
kw
|
Kg
|
L*W*H
|
|
LG108
|
BC1221
|
7
|
35
|
0.85
|
0.72
|
670
|
5.5
|
350
|
935X820X1325
|
|
LG260
|
BC1621
|
5
|
20
|
1.5
|
1.3
|
950
|
5.5
|
360
|
935X820X1325
|
|
7
|
30
|
2
|
1.7
|
7.5
|
370
|
|
10
|
35
|
2.8
|
2.4
|
9
|
380
|
|
13
|
40
|
3.5
|
3.1
|
9
|
380
|
|
LG330
|
BC2021
|
5
|
20
|
1.9
|
1.6
|
800
|
7.5
|
390
|
935X820X1325
|
|
7
|
30
|
2.6
|
2.1
|
9
|
400
|
|
10
|
35
|
3.6
|
3.1
|
11
|
430
|
|
13
|
40
|
4.5
|
4
|
15
|
450
|
|
LG430
|
BC1631A
|
5
|
20
|
2.5
|
2.1
|
1050
|
7.5
|
390
|
1330X735X1600
|
|
7
|
30
|
3.4
|
2.8
|
44
|
440
|
|
10
|
35
|
4.6
|
4
|
15
|
460
|
|
13
|
40
|
5.9
|
5.2
|
15
|
460
|
|
LG560
|
BC2031A
|
5
|
20
|
3.3
|
2.8
|
900
|
11
|
450
|
1330X735X1600
|
|
7
|
30
|
4.4
|
3.6
|
15
|
470
|
|
10
|
35
|
6
|
5.2
|
18.5
|
500
|
|
13
|
40
|
7.6
|
6.7
|
22
|
510
|
|
LG5.0/10
|
BC2242
|
10
|
60
|
6
|
5
|
735
|
30
|
905
|
2070X1020X1200
|
|
LG7.0/10
|
BC2041
|
7
|
30
|
5.2
|
4.9
|
700
|
18.5
|
840
|
2070X1000X1160
|
|
10
|
35
|
7.3
|
6.7
|
22
|
845
|
|
13
|
40
|
9.7
|
8.5
|
25
|
850
|
|
LG9.0/7
|
BC2241
|
10
|
35
|
10
|
8.2
|
630
|
30
|
905
|
2070X1020X1200
|
|
LG9.0/10
|
13
|
40
|
12.7
|
10.4
|
30
|
905
|
*Effective delivery and discharge pressure related to ambient inlet conditions
**Premier package with dual control starter for below 22kw, and constant speed control for 22kw and above.
FEATURES:
1. HEAVY DUTY ROLLER BEARING
Oversize crankshaft roller bearings handling high compression load and precision balanced overhung crankshaft for smooth continuous operation.
2. PRECISION CAST IRON CYLINDERS
Separately cast cylinders with radial fins remove heat efficiently are precision honed for compatibility with piston rings.
3. SOLID PIECE CONNECTING RODS
Solid end precision connecting rod without bolts and nuts come loose.
4. HIGH FLOW VALVES ASSEMBLY
Improved heat treated stainless steel valves assembly increase flow area for durable, reliable operation and easy removal service.
5. HEAVY DUTY DISCHARGE CHECK VALVES
Patient ‘Spring-Cushion’ design high pressure gas check valves for auiet and lasting operation.
6. FILLED SYNTEHTIC LUBRICANT
Improved performance and increase compressor’s life span withstand higher operating temperature, eliminates carbon build-up and extend lubricants change period.
7. EFFICIENT MOTOR
Totally enclosed fan cool(TEFC) squirrel cage induction Class F insulation, IEC frame electric motor.
8. SAFETY VALVES PROTECTION
Inter-stage and discharge safety valves protected system overpressures.
9. INTER AND AFTERCOOLER
High efficient and maintenance free finned tube air cooled after-cooler lower compressed air discharge temperature.
10. EASY ACCESS CAST IRON CRANKCASE
Front access heavy duty cast iron crankcase for easy inspection and maintenance allow total oil slag removal.
