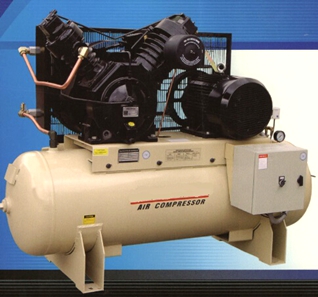

Single & Two stage cast iron industrial
reciprocating air compressor
Souair reciprocating air compressor has been the leader in its class, whether this is measured by reliable, efficiency, rugged, flexibility or maintainability,
it has no equal. In its many configurations, The T32 air compressor has been applied in every thinkable industry. Both manufacturing and service which
use compressed air. Designed for heavy industrial applications the single and two stage reciprocating air compressor provide the quality and
performance that exceed customer requirements.
When you select an Souair reciprocating air compressor, you have selected a compressor that is world renowned for its quality and reliability.
Engineered for high-performance, reliability and efficiency, Souair reciprocating compressor provide easy operation and low maintenance.
What do you get form a standard T-32 Package

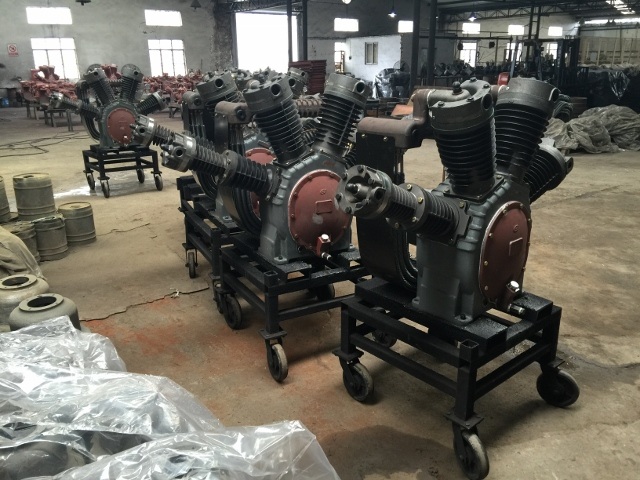

■Heavy duty cast iron pump
■Efficient electric motor
→Built in thermal relay(single phase)
→1.15S.F, TEFC, IP54 protection, Class F insulation (three phase)
■Highly reliable magnetic starter
→Derect-on-line(3hp-10hp)
■Time proven parts & components
■Totally Enclosed Wired Beltguard
■Approved ASME Coded Air Receiver with 3rd Party Certification
TYPE 32, TWO-STAGE SERIES
What are the Benefits and Advantage of Type 32
■100% cast iron frame and separately-cast cylinders
→Precision machined high quality cast iron cylinders with deep radial fins, suitable for heavy duty operation and longer life.
■Heat treated stainless steel finger valve assembly
→Provides a larger flow area resulting in lesser heat and carbon build-up. Easy removal simplifies servicing.
■Efficient finned intercooler tubes
→Runs cooler, resulting in a more efficient compressor that consumes lesser power and lasts longer
■Balanced overhung crankshaft
→Precision balanced for smooth running with replaceable crankpin bushing that protects the crankshaft from damage.
■Rugged one-piece connecting rod
→Solid-end precision type. No bolts or nuts which can come loose.
■Centrifugal unloaded for No Load start
→Prevents motor from starting under load. Eliminates possibility of motor burn out
■Factory-filled anthetic lubricants
→Reduces carbon buildup. Extends lubricant change period. Improves compressor performance and increases compressor life.
100% Cast Iron
1. Removable cylinders. Easy to repair. Provides even, 360 cooling. Eliminate hot spots.
2. Overhung crankshaft. Precision-balanced to run smoothly and quietly.
3. Centrifugal unloader. Saves motor life.
4. One-piece connecting rod. Fewer wearing parts
5. Constant speed control. Maintains smooth system pressure.
6. Two-stage design. Provides 175PSIG operation.
7. Simple combination valves.
8. Dependable and easy to maintain.
9. Finned copper intercooler.
10. Runs cool in even the most demanding conditions.
11. Splash lubrication. Simple and reliable. Does not require oil pump, so it is inexpensive and easy to maintain.
Standard Package
Souair Two-stage ‘standard package’ air compressor are designed for the most demanding application where a dependable air supply is required.
Perfect for automotive , commercial and industrial application.
When performance is defined by maximum operating pressure, increased air flow , and extended duty cycles, Souair is the product of choice.
What do you get from a standard package
■Heavy duty cast iron pump
■Efficient electric motor
→Built-in thermal relay (single phase)
→TEFC IP54 protection, class F insulation (Three phase)
■Highly reliable magnetic starter
→Derect-on-line(3hp-5hp)
→Start delta(20hp-30hp)
■Time proven parts & components
■Totally enclosed wired beltguad
■ASME coded air receiver with 3rd party certification.
Superior
Souair’high performance two-stage, fully packaged air compressor are designed and engineer4d, keeping in mind the increasing demands of the industrial market.
There fully packaged air compressor offer maximum performance in a durable, high quality package for the most demanding applications where dependable air
supply is essential.
Each fully package air compressor comes complete with pre-installed magnetic motor starter. Air-cooled after-cooler, low oil level shutdown switch
and fully enclosed sheet metal belt guard. These packages are suitable for automotive, commercial or industrial applications.
When performance is defined by maximum operating pressure, increased air flow, and extended duty cycles, Souair is the product of choice.
What do you get from a Premier Package
■Heavy duty cast iron pump
■Full time low oil level protection switch
■Efficient electric motor
→TEFC IP54 protection, class F insulation (Three phase)
■Highly reliable magnetic starter
→Start delta(20hp-30hp)
■Aircooled after-cooler
■Time proven parts & components
■Totally enclosed wired beltguard
■ASME coded air receiver with 3rd party certification.
Technical specification data sheet:
|
Model
|
Motor
Horsepower
|
Piston displacement
|
Free air delivery
|
speed
|
W.Press
Max
|
Receiver
Cap./litre
|
Dimension
L*W*H
|
Weight
|
|
HP
|
KW
|
CFM
|
M3/MIN
|
CFM
|
M3/MIN
|
RPM
|
PSIG
|
D.P.200PSIG
|
MM
|
KG
|
LB
|
|
H30
|
3
|
2.2
|
11.6
|
0.33
|
9
|
0.27
|
1040
|
175
|
150
|
1400X515X970
|
223
|
492
|
|
H30(SPH)
|
3
|
2.2
|
11.6
|
.033
|
9
|
0.27
|
1040
|
175
|
150
|
1400X515X970
|
200
|
440
|
|
H55
|
5.5
|
4
|
21
|
0.6
|
17
|
0.48
|
1040
|
175
|
150
|
1400X500X990
|
245
|
541
|
|
H75
|
7.5
|
5.5
|
25
|
0.7
|
20
|
0.56
|
1250
|
175
|
230
|
1700X590X1040
|
355
|
784
|
|
H75A
|
7.5
|
5.5
|
30.4
|
0.86
|
24.7
|
0.70.960.79
|
765
|
175
|
230
|
1700X660X1110
|
360
|
792
|
|
H100A
|
10
|
7.5
|
40.5
|
1.15
|
34
|
1.32
|
1020
|
175
|
230
|
1700X660X1110
|
374
|
825
|
|
H100
|
10
|
7.5
|
38
|
1.08
|
28
|
1.6
|
910
|
175
|
230
|
1700x670x1195
|
414
|
910
|
|
H150
|
15
|
11
|
56.6
|
1.6
|
46.7
|
1.79
|
1030
|
175
|
303
|
1850x990x1290
|
583
|
1287
|
|
H200
|
20
|
15
|
79
|
2.24
|
56.5
|
2.4
|
950
|
175
|
303
|
1850x750x1385
|
633
|
1393
|
|
H200A
|
20
|
15
|
86.2
|
2.44
|
63.3
|
|
950
|
175
|
445
|
1900x1050x1560
|
754
|
1658
|
|
H250
|
25
|
18.5
|
102.7
|
2.9
|
84
|
|
935
|
175
|
445
|
1900x1050x1560
|
780
|
1722
|
