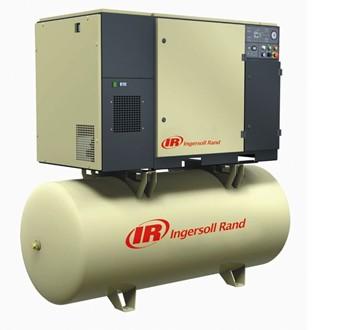

Ingersoll Rand Screw Air Compressors (4-37kW / 5-50HP)
[ Edit： admin 　   Created Date： 2012-12-31   Readed Times：      Font：big middle small]




Basic Info.

Model NO.:
4-37kW / 5-50HP
Power Source:
AC Power
Configuration:
Stationary
Type:
Screw
Lubrication:
Lubricated
Mute:
Yes
Compress Stage:
Single
Power Supply(V/pH/Hz):
380\/3/50(Can Be Changed)


Product Description
Boosting your company's profits was the main goal that Ingersoll Rand had in mind when it designed the revolutionary UP-Series line of integrated rotary screw air solutions. The UP-Series is more than an integrated air system, it's a complete air solution designed to maximize the key drivers of profitability in today's business.

*Note: Package dimensions and weights in specifications are for base mounted units.

1. More Air For Your Money
Industry-leading performance delivers more air for less horsepower, saving thousands of dollars per year on energy.
2. Smart, Energy Efficient Controls
Industry-leading performance delivers more air for less horsepower, saving thousands of dollars per year on energy.
3. Maximum Uptime
Ingersoll Rand is so confident in the performance of the UP-Series, that 5 and 7 year warranty programs are available. Contact your local Ingersoll Rand authorized service provider for availability and details.
Installation Close to Point-of-Use
Whisper quiet operation allows for installation closer to point-of-use, reducing costs and ensuring a better & safer work environment.

4. Closely Maintained Pressure
Whisper quiet operation allows for installation closer to point-of-use, reducing costs and ensuring a better & safer work environment.
5.70% Fewer Connections
Smart integration eliminates leaks and pressure drops maximizing reliability.
6. Compact Footprint Design
Small footprint frees up valuable floor space and reduces install costs.
7. Optional Total Air System Package
Complete integrated air treatment package.
Model
Frequency (Hz)
Rated Pressure (barg / psig)
Nominal Power (kW / hp)
Flow (m3min / cfm)
Length (cm / in)
Width (cm / in)
Height (cm / in)
Weight (kg / lbs)
UP5 4-8
50
8 / 145
4/5
0.55 / 19.5
104 / 41
73 / 29
91 / 36
295 / 650
UP5 4-10
50
10 / 145
4/5
0.45 /16
104 / 41
73 / 29
91 / 36
295 / 650
UP5 5-8
50
8 / 115
5.5 / 7.5
0.82 / 29
104 / 41
73 / 29
91 / 36
295 / 650
UP5 5-10
50
10 / 145
5.5 / 7.5
0.71 / 26
104 / 41
73 / 29
91 / 36
295 / 650
UP5 5-14
50
14.5 / 210
5.5 / 7.5
0.51 / 18
104 / 41
73 / 29
91 / 36
295 / 650
UP5 7-8
50
8 / 115
7.5 / 10
1.08 / 38
104 / 41
73 / 29
91 / 36
295 / 650
UP5 7-10
50
10 / 145
14.5 / 210
7.5 / 10
104 / 41
73 / 29
91 / 36
295 / 650
UP5 7-14
50
14.5 / 210
7.5 / 10
0.68 / 24
104 / 41
73 / 29
91 / 36
295 / 650
UP5 11c-8
50
8 / 115
11/15
1.60 / 56.5
104 / 41
73 / 29
91 / 36
295 / 650
UP5 11c-10
50
10 / 145
11/15
1.42 / 50
104 / 41
73 / 29
91 / 36
295 / 650
UP5 11c-14
50
14.5 / 210
11/15
1.08 / 38
104 / 41
73 / 29
91 / 36
295 / 650
UP5 11-7
50
7 / 100
11/15
1.84 / 65
128 / 51
92 / 36
105 / 41
509 / 1122
UP5 11-8
50
8 / 115
11/15
1.70 / 60
128 / 51
92 / 36
105 / 41
509 / 1122
UP5 11-10
50
10 / 145
11/15
1.54 / 54
128 / 51
92 / 36
105 / 41
509 / 1122
UP5 15-7
50
7 / 100
15 / 20
2.41 / 85
128 / 51
92 / 36
105 / 41
509 / 1122
UP5 15-8
50
8 / 115
15 / 20
2.36 / 83
128 / 51
92 / 36
105 / 41
509 / 1122
UP5 15-10
50
10 / 145
15 / 20
2.07 / 73
128 / 51
92 / 36
105 / 41
509 / 1122
UP5 15-14
50
14 / 210
15 / 20
1.61 / 57
128 / 51
92 / 36
105 / 41
509 / 1122
UP5 18-7
50
7 / 100
18.5 / 25
3.00 / 106
128 / 51
92 / 36
105 / 41
532 / 1173
UP5 18-8
50
8 / 115
18.5 / 25
2.87 / 101
128 / 51
92 / 36
105 / 41
532 / 1173
UP5 18-10
50
10 / 145
18.5 / 25
2.61 / 92
128 / 51
92 / 36
105 / 41
532 / 1173
UP5 18-14
50
14 / 210
18.5 / 25
2.01 / 71
128 / 51
92 / 36
105 / 41
532 / 1173
UP5 22-7
50
7 / 100
22 / 30
3.54 / 125
128 / 51
92 / 36
105 / 41
540 / 1190
UP5 22-8
50
8 / 115
22 / 30
3.34 / 118
128 / 51
92 / 36
105 / 41
540 / 1190
UP5 22-10
50
10 / 145
22 / 30
3.11 / 110
128 / 51
92 / 36
105 / 41
540 / 1190
UP5 22-14
50
14 / 210
22 / 30
2.32 / 82
128 / 51
92 / 36
105 / 41
540 / 1190
UP5 22E-7
50
7 / 100
22 / 30
3.95 / 140
171 / 67
138 / 54
134 / 53
992 / 2187
UP5 22E-8
50
8 / 115
22 / 30
3.70 / 131
171 / 67
138 / 54
134 / 53
992 / 2187
UP5 22E-10
50
10 / 145
22 / 30
3.35 / 118
171 / 67
138 / 54
134 / 53
992 / 2187
UP5 22E-14
50
14 / 210
22 / 30
2.75 / 97
171 / 67
138 / 54
134 / 53
992 / 2187
UP5 30-7
50
7 / 100
30 / 40
5.40 / 191
171 / 67
138 / 54
134 / 53
1028 / 2266
UP5 30-8
50
8 / 115
30 / 40
5.10 / 180
171 / 67
138 / 54
134 / 53
1028 / 2266
UP5 30-10
50
10 / 145
30 / 40
4.80 / 169
171 / 67
138 / 54
134 / 53
1028 / 2266
UP5 30-14
50
14 / 210
30 / 40
3.90 / 138
171 / 67
138 / 54
134 / 53
1028 / 2266
UP5 37PE-7
50
7 / 100
37 / 50
6.02 / 212
171 / 67
138 / 54
134 / 53
1064 / 2345
UP5 37PE-8
50
8 / 115
37 / 50
5.89 / 208
171 / 67
138 / 54
134 / 53
1064 / 2345
UP5 37PE-10
50
10 / 145
37 / 50
5.70 / 201
171 / 67
138 / 54
134 / 53
1064 / 2345
UP5 37PE-14
50
14 / 210
37 / 50
4.73 / 167
171 / 67
138 / 54
134 / 53
1064 / 2345
UP6 5-125
60
8.5 / 125
4/5
0.52 / 18.5
104 / 41
73 / 29
91 / 36
295 / 650
UP6 5-150
60
10.5 / 150
4/5
0.45 / 16
104 / 41
73 / 29
91 / 36
295 / 650
UP6 7-125
60
8.5 / 125
5.5 / 7.5
0.79 / 28
104 / 41
73 / 29
91 / 36
295 / 650
UP6 7-150
60
10.5 / 150
5.5 / 7.5
0.70 / 25
104 / 41
73 / 29
91 / 36
295 / 650
UP6 7-210
60
14.5 / 210
5.5 / 7.5
0.50 / 17.5
104 / 41
73 / 29
91 / 36
295 / 650
UP6 10-125
60
8.5 / 125
7.5 / 10
1.08 / 38
104 / 41
73 / 29
91 / 36
295 / 650
UP6 10-150
60
8.5 / 125
7.5 / 10
0.96 / 34
104 / 41
73 / 29
91 / 36
295 / 650
UP6 10-210
60
14.5 / 210
7.5 / 10
0.68 / 24
104 / 41
73 / 29
91 / 36
295 / 650
UP6 15c-125
60
8.5 / 125
11/15
1.55 / 55
104 / 41
73 / 29
91 / 36
295 / 650
UP6 15c-150
60
10.5 / 150
11/15
1.42 / 50
104 / 41
73 / 29
91 / 36
295 / 650
UP6 15c-210
60
14.5 / 210
11/15
1.08 / 38
104 / 41
73 / 29
91 / 36
295 / 650
UP6 15-125
60
8.5 / 125
11/15
1.84 / 65
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 15-150
60
10.5 / 150
11/15
1.64 / 58
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 20-125
60
8.5 / 125
11/15
2.35 / 83
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 20-150
60
10.5 / 150
15 / 20
2.12 / 75
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 20-200
60
14 / 200
15 / 20
1.64 / 58
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 25-125
60
8.5 / 125
18.5 / 25
2.89 / 102
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 25-150
60
10.5 / 150
18.5 / 25
2.61 / 92
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 25-200
60
14 / 200
18.5 / 25
2.12 / 75
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 30-125
60
8.5 / 125
22 / 30
3.54 / 125
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 30-150
60
10.5 / 150
22 / 30
3.17 / 112
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 30-200
60
14 / 200
22 / 30
2.61 / 92
128 / 51
92 / 36
105 / 41
509 / 1122
UP6 40-115
60
8 / 115
30 / 40
5.32 / 188
171 / 67
138 / 54
134 / 53
1028 / 2266
UP6 40-125
60
8.5 / 125
30 / 40
5.24 / 185
171 / 67
138 / 54
134 / 53
1028 / 2266
UP6 40-150
60
10.5 / 150
30 / 40
4.81 / 170
171 / 67
138 / 54
134 / 53
1028 / 2266
UP6 40-200
60
14 / 200
30 / 40
4.05 / 143
171 / 67
138 / 54
134 / 53
1028 / 2266
UP6 50PE-115
60
8 / 115
37 / 50
6.02 / 212
171 / 67
138 / 54
134 / 53
1064 / 2345
UP6 50PE-125
60
8.5 / 125
37 / 50
5.89 / 208
171 / 67
138 / 54
134 / 53
1064 / 2345
UP6 50PE-150
60
10.5 / 150
37 / 50
5.70 / 201
171 / 67
138 / 54
134 / 53
1064 / 2345
UP6 50PE-200
60
14 / 200
37 / 50
4.73 / 167
171 / 67
138 / 54
134 / 53
1064 / 2345
