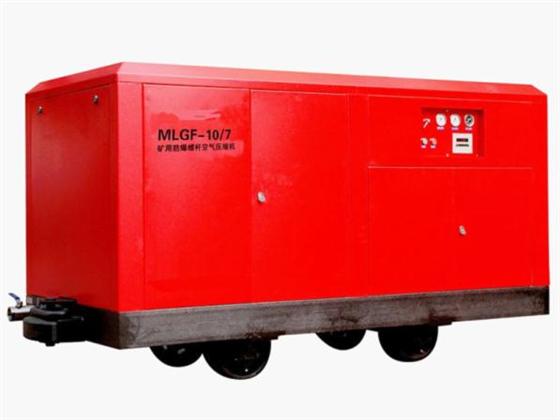

ML series Explosion Proof minerals project screw air compressor
Efficient use of host, advanced structure, high precision, smooth running, low noise, long life, low maintenance cost, low fuel consumption, high efficiency
advantages. Air control system is stable and reliable, 0-100 load adjustment, with much practical use gas, automatically adjust the power consumption.
Explosion-proof, overload, short-circuit, phase, leakage protection; also has the ultra temperature, air filter, oil filter blockage blockage, alarm and overtemperature shutdown protection
device blocking oil core, and a capacity adjusting, system pressure valve, safety valve three protection against overpressure operation. The use of safe
and reliable. Oil and gas separation filter adopts imported fine glass fiber, compressed air oil content in 3ppm. The machine can operate safely in the
nearby underground tunneling face, and with the tunnel extend to move forward, so it can keep the higher pressure, pneumatic mechanical efficiency than
the ground when the air supply is increased by 30% to one times, electricity consumption decreased by 30%, and can save a lot of pipeline. The compresso
r is also suitable for the engineering tunnel construction.
Souair brand MLG series explosion proof minerals project screw air compressor
|
Model
|
MLGF3.6/7-22G
|
MLGF6/7-37G
|
LGF7.6/7-45G
|
MLG10/8-55G
|
Capacity
M3/min
|
3.6
|
6
|
7.6
|
10
|
Pressure
MPa
|
0.7
|
0.7
|
0.7
|
0.8
|
Voltage
|
380/660
|
380/660(660/1140)
|
380/660(660/1140)
|
380/660(660/1140)
|
Motor power
kw
|
22
|
37
|
45
|
55
|
Explosion proof
|
ExdI
|
ExdI
|
ExdI
|
ExdI
|
Weight
kg
|
1160
|
1600
|
1700
|
2250
|
Dimension
mm
|
2300×960×1330
|
2730×1100×1400
|
2940×1200×1480
|
2940×1200×1480
|
Channel
mm
|
600/762/900
|
600/762/900
|
600/762/900
|
600/762/900
|
Model
|
MLGF13/7-75G
|
MLGF16/8-90G
|
LGF21/8-132G
|
MLG25/8-160G
|
Capacity
M3/min
|
13
|
16
|
21
|
25
|
Pressure
MPa
|
0.7
|
0.8
|
0.8
|
0.8
|
Voltage
|
380/660(660/1140)
|
380/660(660/1140)
|
380/660(660/1140)
|
380/660(660/1140)
|
PLC Explosion proof
|
ExdibI
|
ExdibI
|
ExdibI
|
ExdibI
|
Motor explosion proof
|
ExdI
|
ExdI
|
ExdI
|
ExdI
|
Weight
kg
|
2600
|
2648
|
3725
|
3760
|
Dimension
mm
|
3240×1210×1550
|
3240×1210×1550
|
3560×1360×1695
|
3740×1360×1745
|
Channel
mm
|
600/762/900
|
600/762/900
|
600/762/900
|
600/762/900
|
Model
|
MLGF30/8-185G
|
MLGF35/8-200G
|
MLGF42/8-250G
|
MLG 42/8-250G
|
Capacity
M3/min
|
30
|
35
|
42
|
42
|
Pressure
MPa
|
0.8
|
0.8
|
0.8
|
0.8
|
Voltage
|
660/1140
|
660/1140
|
660/1140
|
660/1140
|
Motor power
kw
|
185
|
200
|
250
|
250
|
Motor explosion proof
|
ExdI
|
ExdI
|
ExdI
|
ExdI
|
Weight
kg
|
4235
|
4255
|
5860
|
5860
|
Dimension
mm
|
3850×1430×1850
|
3850×1430×1850
|
4450×1600×2000
|
4300×1600×2000
|
Channel
mm
|
600/762/900
|
600/762/900
|
600/762/900
|
600/762/900
|
