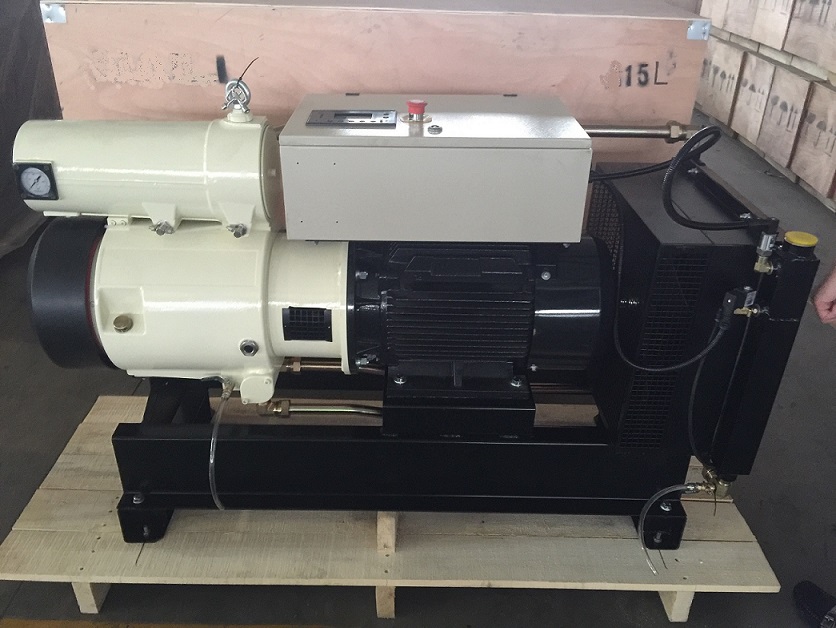

SOUAIR Sliding vane compressor

SR series vane compressor simplified appearance design on base of without change for air end, decrease cost of whole machine and lift ratio of equipment cost performance. Open whole machine structure to make it easier to repair and maintain. Concise control panel can make person who firstly using understand how to operate.
Advantages:
▲ Low maintaining cost
Operation of maintaining is only changing oil, cleaning or replacing air filter at set time interval and clean radiator. Oil/air separator core need to be replaced every 8000 to 10000 working hours and largely save cost.
▲ Automatic flow rate control
The servo valve in inlet is designed as maximum flow and decrease unnecessary pressure loss. When compressor in full-load，the air suction valve will open totally. As requirement decrease, internal pressure increase, servo valve gradually close gas inlet valve, adjust realistic gas production and meet customer changing demands. Make sure you only need exert needed energy for completing work and can not cause excessive waste. It can realize accurate match between power consumption and air consumption so decrease energy cost and save cost.
▲ Compact compressing unit
Compact character is one of important features of NAILI compressor: oil cavity and separator, check and servo valve, air valve and oil filter are all integrated into compressors.

▲ Control panel
The control panel is easy and practical, easy operation, auto/continual modes for choose, Chinese/English two languages for choose, reserve remote control connector to realize remote control.
▲ Energy consumption
The compressor is designed extremely precise, energy consumption of every m3/min gas exhaust volume is the minimum in similar products which make it very economically proper for installing demands.
▲ Air quality
The exclusive three-stage oil separating system guarantees an oil carry-over in the air less than 1.5PPM.The coolers guarantee air temperatures no higher than 5-10℃ above the room temperature.
▲ Straight connection
It is realized by flexible shaft-coupling between motors and compressors, so it does not need transmission belt. It does not need maintain similarly as gear or ball bearing.
▲ Durable
Low rotating speed (only 1480 r.p.m), low abrasion, and low noise ensure long service life.
▲ Fan power
Main motor drive compressor and cooling fan at the same time (it equips one single motor drive for general type air compressor, only increase electricity consumption and malfunction opportunity).
▲ Reliability
These compressors can operate everyday 24 hours and every year 12 months under normal pressure. NAILI compressor can work over 100,000 hours.
▲ Noise level
The level of noise decrease largely and conforms to current regulation.

SR series vane compressor simplified appearance design on base of without change for air end, decrease cost of whole machine and lift ratio of equipment cost performance. Open whole machine structure to make it easier to repair and maintain. Concise control panel can make person who firstly using understand how to operate.

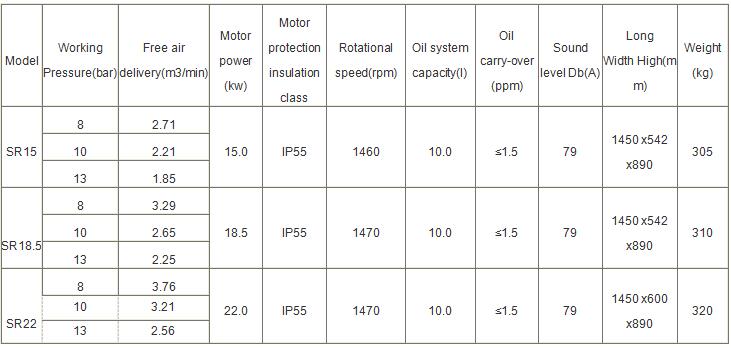

Technical Parameters:

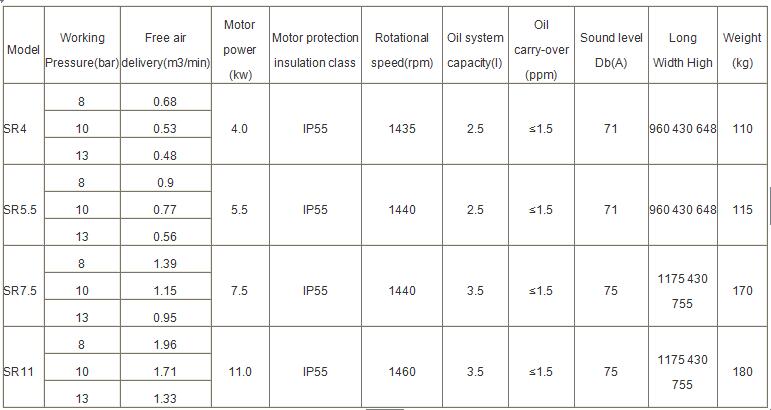

Power from 4KW-22KW.

Applications: Various Industries

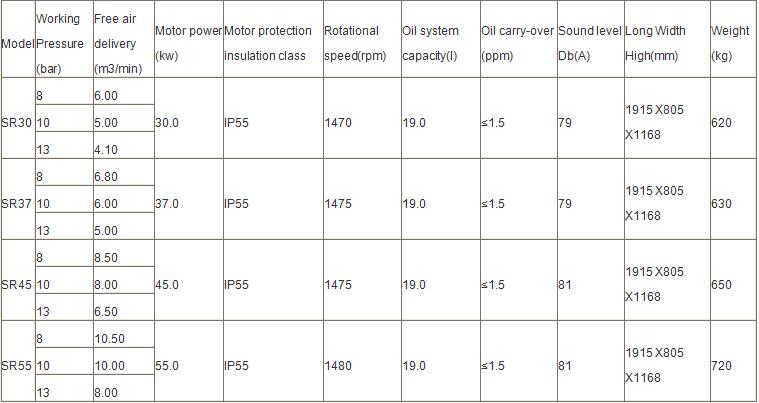

Power from 30KW-55KW.

Applications: Various Industries
