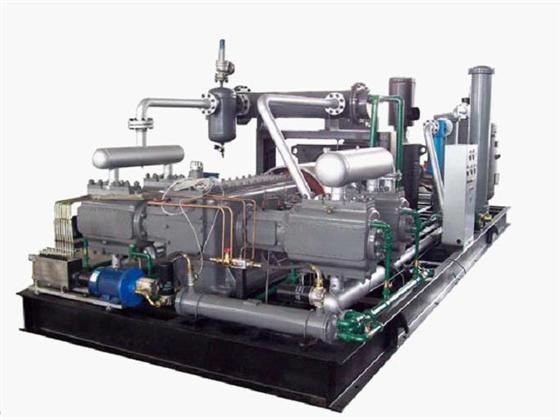

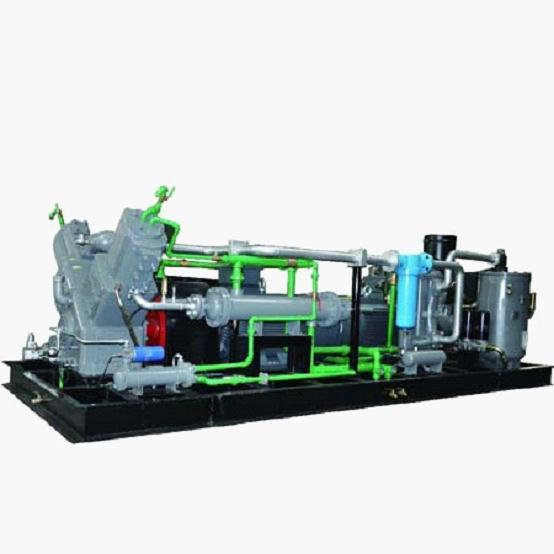

High pressure >40bar Screw piston combined air compresor
Screw booster combined compressor,means that compressed the air from the normal screw air compressor with 6bar-12bar, then get 30bar-40bar pressure compressor with big flow capacity above 5 M3/min -40 M3/min. This kind screw booster compressor is always used for bottle making industry, such
as plastic bottle, carton making factory,fruit drinking factory, clear drilling water factory, because these kind plant need more big flow capacity high
pressure PET compressor for their producing line.
The characteristic below:
1. Low noise level , stable compressed air supply
2. Integrated air compressor station
3. Without oil water, clear compressed air
4. Air cooled type for small power compressor and water cooled type for big power compressor.
|
High pressure(>40bar) screw booster air compressor combined
|
|
SN.
|
MODEL
|
F.A.D
m3/min
|
Inlet Pressure
Mpa
|
Outlet Pressure
Mpa
|
Structure&Stage
|
Lubricated
|
Cooling
|
Motor Power/Voltage
|
Dimension
L*M*H
|
Weight
KG
|
Note
|
|
1
|
LG.V-8/100
|
8
|
0
|
10
|
Screw+V type;three stage compressed
|
Oil inject
|
Water/combined cooling
|
132KW/380V
|
5000*2500*1850
|
6000
|
|
|
2
|
LG.V-10/100
|
10
|
0
|
10
|
|
|
|
160KW/380V
|
5000*2500*1850
|
8000
|
|
|
3
|
LG.V-15/100
|
15
|
0
|
10
|
|
|
|
220KW/380V
|
5000*2500*1850
|
8500
|
|
|
4
|
LG.V-20/100
|
20
|
0
|
10
|
|
|
|
315KW/380V
|
5000*2500*1850
|
10000
|
|
|
5
|
LG.V-30/100
|
30
|
0
|
10
|
|
|
|
450KW
|
6500*2500*2000
|
15000
|
6KV/10KV
|
|
6
|
LG.M-40/100
|
40
|
0
|
10
|
|
|
|
630KW
|
7000*2500*2200
|
16000
|
6KV/10KV
|
|
7
|
LG.M-50/100
|
50
|
0
|
10
|
|
|
|
710KW
|
7000*2500*2400
|
18000
|
6KV/10KV
|
|
8
|
LG.V-8/150
|
8
|
0
|
15
|
|
|
|
132KW/380V
|
5000*2500*1850
|
8000
|
|
|
9
|
LG.V-10/150
|
10
|
0
|
15
|
|
|
|
185KW/380V
|
5000*2500*1850
|
8000
|
|
|
10
|
LG.V-15/150
|
15
|
0
|
15
|
|
|
|
250KW/380V
|
5000*2500*1850
|
8500
|
|
|
11
|
LG.V-20/150
|
20
|
0
|
15
|
|
|
|
355KW/380V
|
7000*2500*1850
|
10000
|
|
|
12
|
LG.M-30/150
|
30
|
0
|
15
|
|
|
|
500KW
|
7000*2500*2200
|
16000
|
6KV/10KV
|
|
13
|
LG.V-8/250
|
8
|
0
|
25
|
|
|
|
160KW/380V
|
5000*2500*1850
|
8000
|
|
|
14
|
LG.V-10/250
|
10
|
0
|
25
|
|
|
|
185KW/380V
|
5000*2500*1850
|
8000
|
|
|
15
|
LG.V-15/250
|
15
|
0
|
25
|
|
|
|
280KW/380V
|
5000*2500*1850
|
8500
|
|
|
16
|
LG.V-20/250
|
20
|
0
|
25
|
|
|
|
400KW/380V
|
6000*2500*2000
|
15000
|
|
|
17
|
LG.V-8/350
|
8
|
0
|
35
|
Screw+V type& four stage compressed
|
|
|
160KW/380V
|
5000*2500*1850
|
8000
|
|
|
18
|
LG.V-10/350
|
10
|
0
|
35
|
|
|
|
200KW/380V
|
5000*2500*1850
|
8000
|
|
|
19
|
LG.V-15/350
|
15
|
0
|
35
|
|
|
|
280KW/380V
|
5000*2500*1850
|
8500
|
|
|
20
|
OG.V-20/350
|
20
|
0
|
35
|
|
|
|
415KW/380V
|
5000*2500*1850
|
8500
|
|
|
21
|
LG.V-8/400
|
8
|
0
|
40
|
|
|
|
185KW/380V
|
5000*2500*1850
|
8000
|
|
|
22
|
LG.V-10/400
|
10
|
0
|
40
|
|
|
|
200KW/380V
|
5000*2500*1850
|
8000
|
|
|
23
|
LG.V-15/400
|
15
|
0
|
40
|
|
|
|
315KW/380V
|
5000*2500*1850
|
8500
|
|
|
24
|
OG.V-20/400
|
20
|
0
|
40
|
|
|
|
415KW/380V
|
5000*2500*1850
|
8500
|
