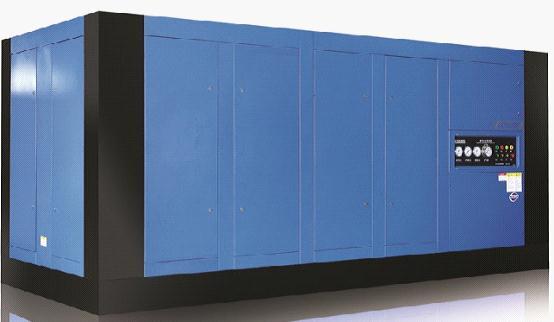

Vinyl chloride gas screw compressor
Technology data sheet：
|
Model
|
UD160W-7T
|
UD315W-7T
|
UD355W-7T
|
UD400W-7T
|
|
Type
|
Single pump,screw single stage
|
Double pump screw double stage
|
|
Compressed media
|
Vinyl chloride gas
|
|
Capacity（A.T.M） m3/h
|
1800
|
3800
|
4100
|
4500
|
|
Flow capacity Nm3/h
|
1500
|
3200
|
3500
|
3850
|
|
Speed radian rpm
|
1850
|
2100
|
1300
|
1360
|
|
Inlet pressure Kpa(G)
|
0-5
|
|
Inlet Temp.℃
|
＜20
|
|
Outlet pressure Mpa(G)
|
0.75
|
|
Outlet Temp.℃
|
＜100
|
|
Motor
|
Power kW
|
160
|
315
|
355
|
400
|
|
Speed rpm
|
1485
|
|
Explosion
|
ExdIIBT4（ExdIICT4）
|
|
Proof
|
IP54
|
|
Flange
|
F
|
|
Temp.rise
|
B
|
|
Voltage V
|
380V、6000V、10000V（可选）
|
|
Cooling water
|
Water cooling m3/h
|
13
|
26
|
29
|
33
|
|
Water Inlet Mpa(G)
|
0.25～0.5
|
|
Water ℃
|
10～34
|
|
Water temp. Rise ℃
|
12
|
|
Outlet/inlet mm
|
G1½
|
DN50
|
DN65
|
DN65
|
