Associated gas screw compressor screw type
[ Edit： admin 　   Created Date： 2013-05-05   Readed Times：      Font：big middle small]

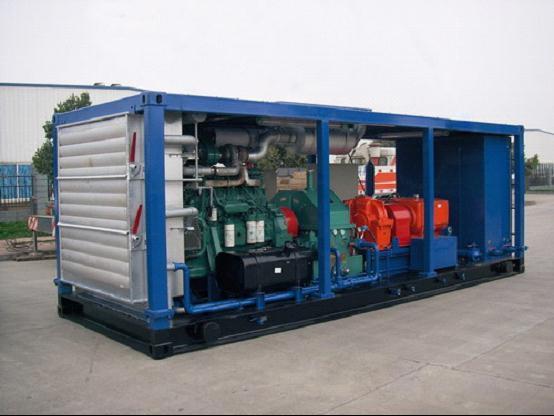

 Compairs Associated gas screw compressor



Technology Data Sheet:

Model

F.A.D

m3/min

Inlet pressure

Mpa(G)

Outlet pressure

Mpa(G)

type

Motor

(KW)

Speed

(rpm)

Cooling

UDM0.5/0.2-1.2

0.6

0.1-0.35

0.5-1.7

Single stage

Oil inject

11

1500

Air cooled

UDM1.0/0.2-1.2

1.2

0.1-0.35

0.5-1.7

18.5

3000

UDM1.5/0.2-1.2

1.8

0.1-0.35

0.5-1.7

22

1500

UDM2.5/0.2-1.2

2.4

0.1-0.35

0.5-1.7

30

1500

UDM3.0/0.2-1.2

3.6

0.1-0.35

0.5-1.7

45

3000

UDM5.0/0.2-1.2

6

0.1-0.35

0.5-1.7

55

3000
