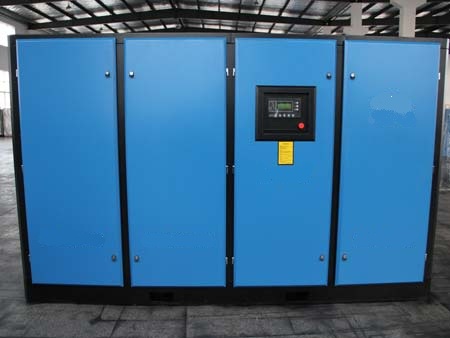

Stationary Screw air compressor
Discharge capacity:5.8-28.7m3/min
Discharge pressure:0.7-1.3Mpa
Installed power: 60HP(45KW)~220HP(160KW)
|
Model
|
LG-45A
|
LG-55A
|
LG-75A
|
LG-90A
|
LG-110A
|
LG-132A
|
LG-160A
|
|
Flow Capacity(M3/min)/
Pressure(Bar)
|
7.36/7
|
10.8/7
|
13.5/7
|
16.2/7
|
21.6/7
|
25.2/7
|
28.7/7
|
|
7.10/8
|
10.1/8
|
12.7/8
|
15.2/8
|
20.1/8
|
24/8
|
27.6/8
|
|
6.47/10
|
8.5/10
|
11.3/10
|
14.3/10
|
17.5/10
|
21/10
|
25.3/10
|
|
5.80/13
|
7.69/13
|
10.0/13
|
12.9/13
|
16.0/13
|
18.3/13
|
22.4/13
|
|
Cooling Type
|
A/C
|
A/C
|
A/C
|
A/C or W/C
|
A/C or W/C
|
A/C or W/C
|
A/C or W/C
|
|
Driven Method
|
Coupling
|
Coupling
|
Coupling
|
Coupling
|
Coupling
|
Coupling
|
Coupling
|
|
Power(KW)
|
45
|
55
|
75
|
90
|
110
|
132
|
160
|
|
Dimension(L*W*H)MM
|
1700*950*1350
|
1720*1000*1520
|
1850*1080*1660
|
2200*1260*1750
|
2330*1300*1850
|
2400*1320*1820
|
2760*1550*2090
|
|
Weight(Kg)
|
1210
|
1450
|
1820
|
2200
|
2450
|
3150
|
3580
|
|
Outlet Size:
|
G1 1/2''
|
G2''
|
G2''
|
G2''
|
DN65
|
DN65
|
DN80
|
|
|
|
|
|
|
|
|
|
|
Compressed stage: single ; V/F: 380V/460V,50Hz/60Hz,3Ph ; Ambient Temperature -5℃ ~ 46℃ ； Startup: Delta star
|
